Extreme Ladder Bars

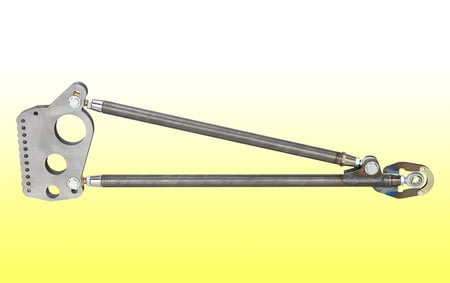

36" Extreme Bars (Pair)

Extreme Ladder Bars feature all chromoly construction. Separate 1-3/8" x .095 chromoly upper and lower bars with weld-in tube adapters allow you to adjust instant center height, pinion angle, and overall leverage. The front rod ends are 3/4" x 3/4" chromoly with safety tabs and the rear uses 3/4" x 5/8" solid rod ends. The 1/4" thick double-shear housing brackets feature two upper and two lower mounting holes for the ladder bar and provisions for adjustable shock mounts on the rear of the brackets. Can be assembled up to 36" long.

TIG WELDING REQUIRED!

Part #: 017384

Price: $749.95
Quantity:
